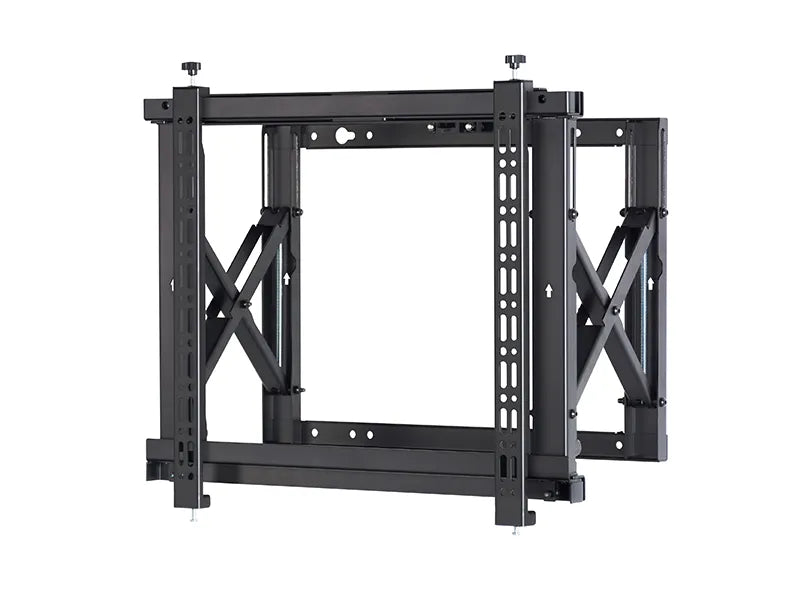

B-Tech BT8301 Pop-Out Video Wall Mount

Designed to make videowall installations as simple as possible, this modular videowall mount can be used to create unlimited videowall configurations in both landscape and portrait format.

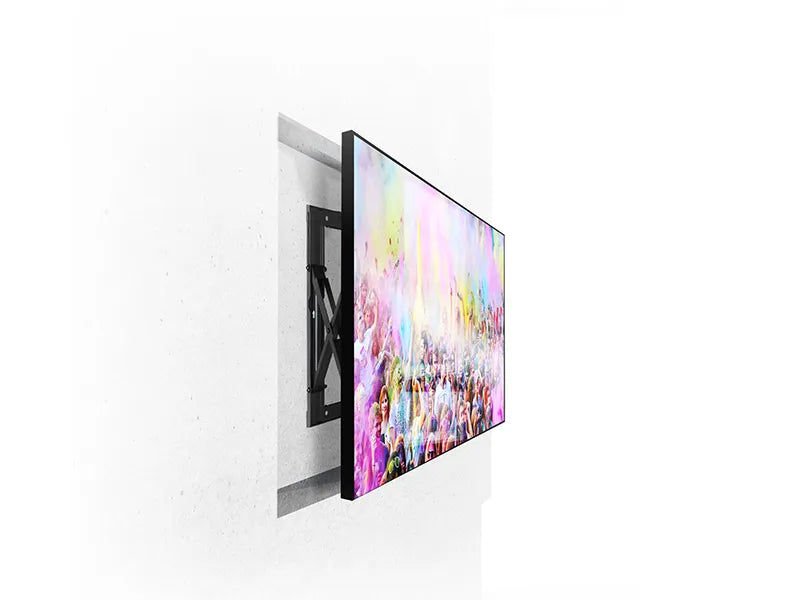

The BT8301 has a low profile design which is ideal for mounting into walls with a shallow recess, a pop-out system enables a quick and easy access to the rear of the mounted screen for servicing and maintenance and +/-4mm micro adjustment makes accurate screen alignment quick and easy.

• Slim design ideal for low profile installs on walls or in shallow recesses
• Modular mount allows videowall assembly in an unlimited number of configurations
• Suitable for landscape or portrait screen mounting

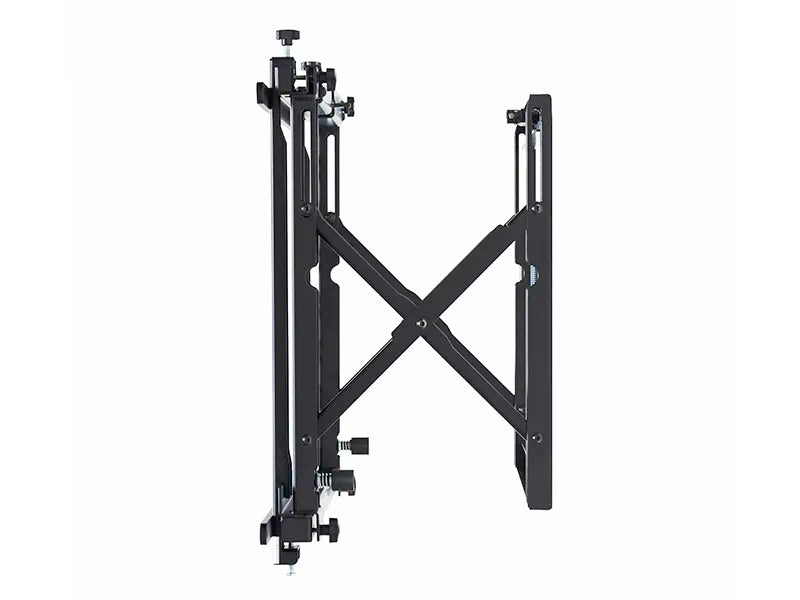

• Push to open / push to close system provides quick and easy service access

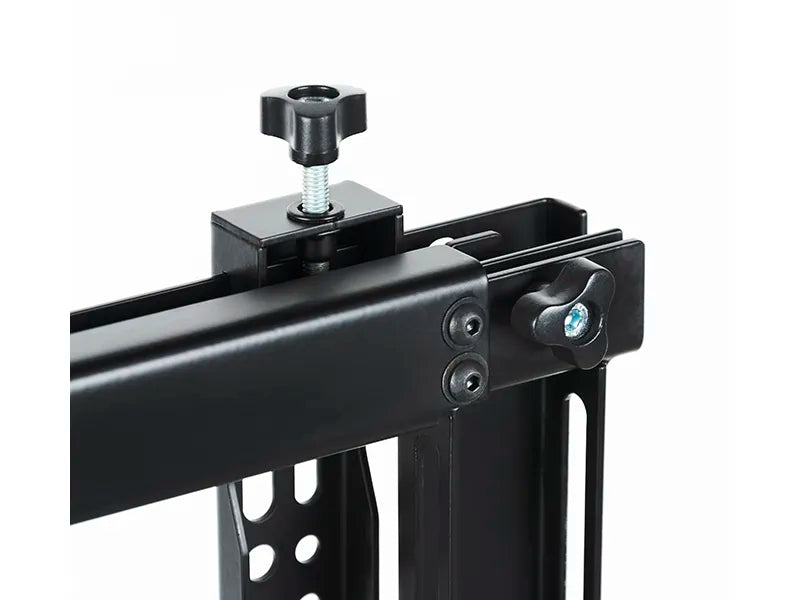

• Tool-less micro-adjusment of +/-4mm at each corner for seamless display alignment
• Lateral adjustment of screen once mounted
• Compatible with B-Tech's collar and pole system for pole mounting screens
• Safety screws help prevent unauthorised removal of screens
• All mounting hardware included
• For sreen sizes: 42" (106cm) - 70" (177")
• Max load: 35kg (77lbs)
• VESA® compatibility: up to 600 x 400 *
• Universal fixings: up to 442 x 436mm (17.5" x 17")
• Depth flat to the wall: 77.5mm* (3") (+/-4mm (0.16") with micro-adjustment)
• Depth popped out: 260mm* (10.2") (+/-4mm (0.16") with micro-adjustment)
• Screen height adjustment: +13mm (0.5")


* Please note using the included Interface Adaptor Arms to mount VESA 600 x 400
screens will increase the total depth of the product by 6mm, for a total depth of
83.5mm, or 260mm whilst popped out (+/-4mm micro-adjustment).
