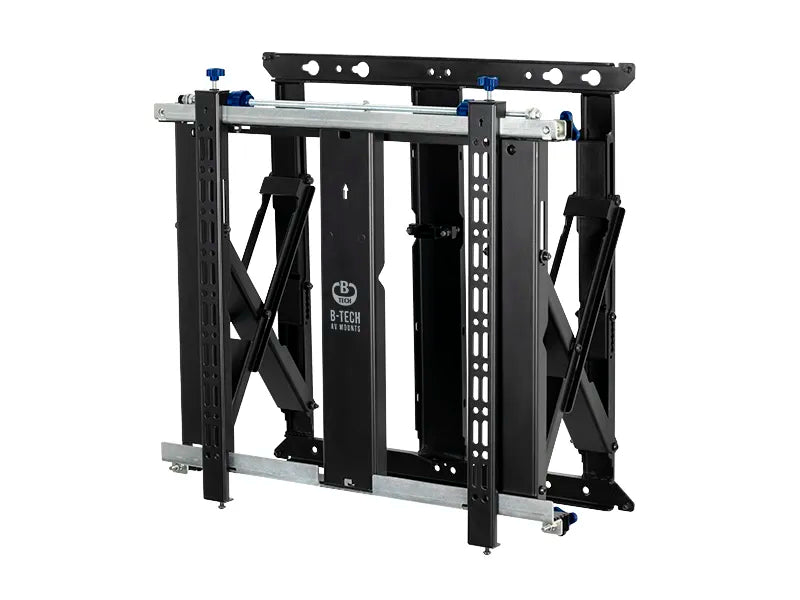

B-Tech BT8312 Slimline Soft-Open Full Service Video Wall Mount

Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format.

The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.

• Slim design ideal for low profile installs on walls or mounting in recesses

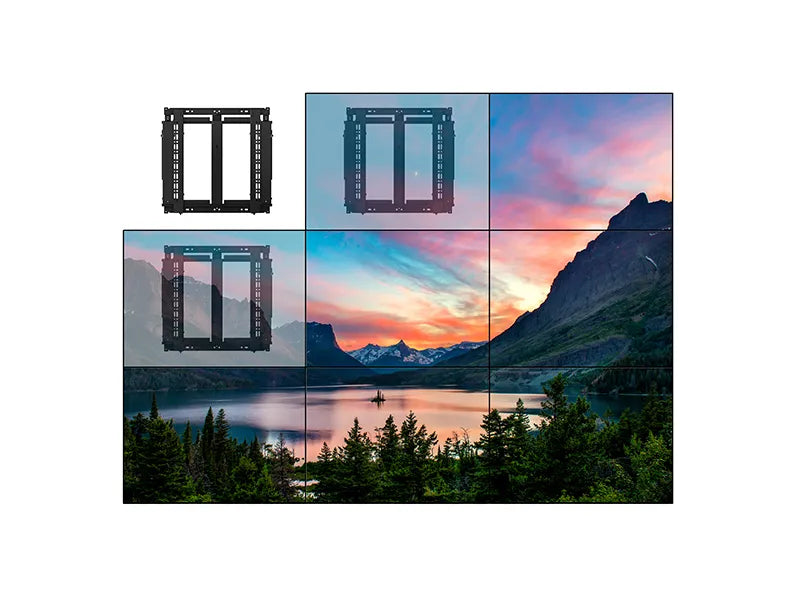

• Modular mount allows video wall assembly in an unlimited number of configurations
• Suitable for landscape or portrait screen mounting
• Pop-out system with soft opening provides a safe and easy service access

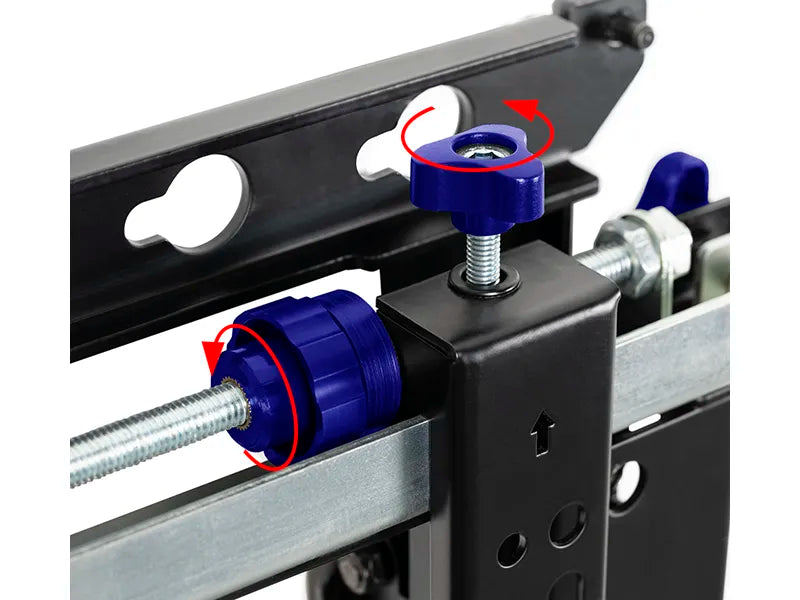

• Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment

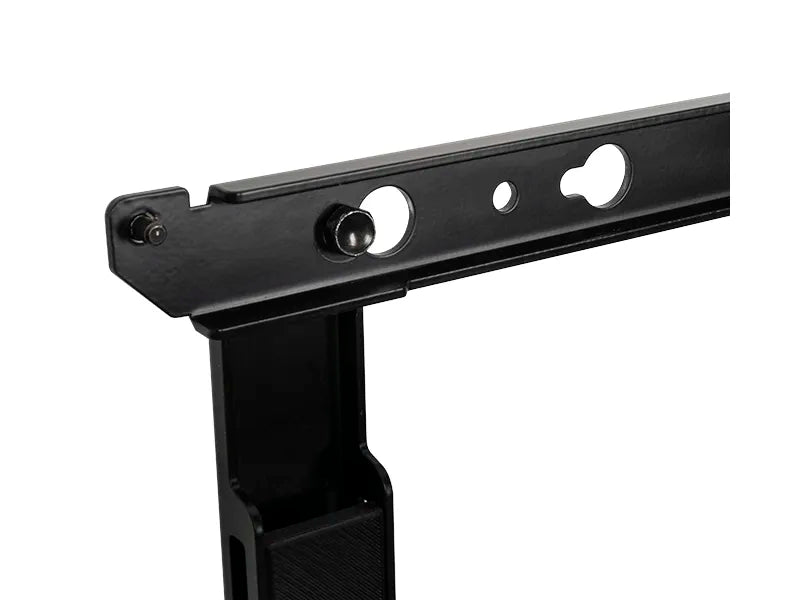

• Keyhole mounting for quick and easy installation
• Suitable for both wall or pole mounting
• Integrated locking mechanism prevents accidental pop-out of mount
• Safety screws help prevent unauthorised removal of screens
• Recommended screen size: 42" (106cm) - 75" (190cm) (46" (116cm) - 75" (190cm) in portrait)
• Max load: 50kg (110lbs)
• VESA® compatibility (as standard): 200 x 100 to 400 x 400
• VESA® compatibility (with included adaptors): up to 600 x 400*

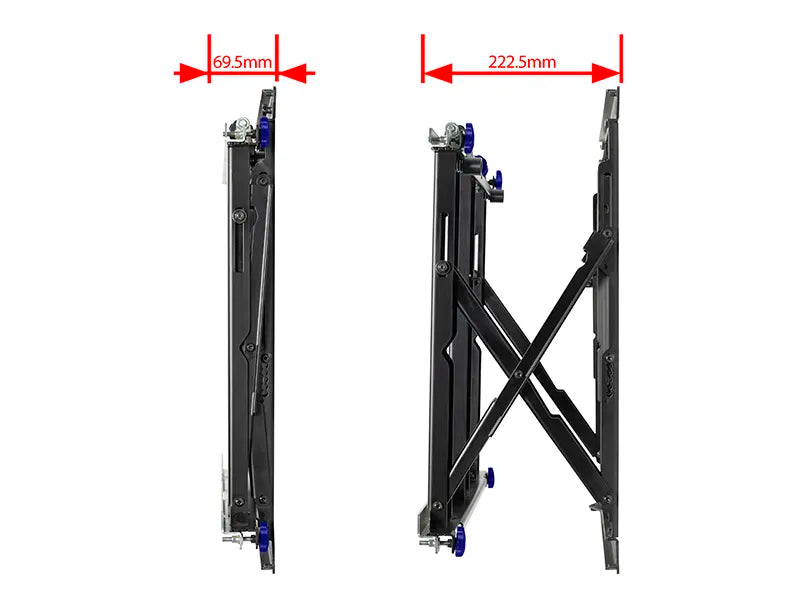

• Flat to wall depth: 69.5mm (2.7") (+/-7.5mm (0.3") with micro-adjustment)
• Popped out depth: 222.5mm (8.8") (+/-7.5mm (0.3") with micro-adjustment)
• Tool less micro-adjustment: +/-7.5mm (0.3") per corner

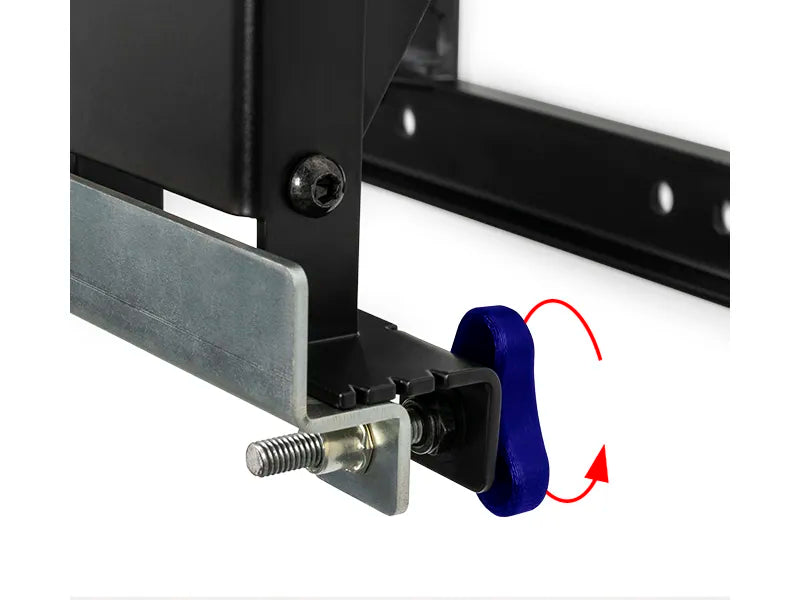

• Screen height adjustment: +15mm (0.6")

* Please note using the included Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm (0.2"), for a total depth of: 75.5mm (3") or 228.5mm (9") whilst popped out.
